MR130數字式兩相步進驅動器，基於TI公司32位DSP平蔓，內置微細分技術和上電參數自整定功能。M R130具有低噪音、低振動、低發熱和高速大力矩輸出的特點,能夠適應於步進電機的大部分運用場合。

■脈衝模式:單脈衝/雙脈衝/正交脈衝

■信號電平：3.3-24V兼容,PLC應用無需串電阻。

■電源電壓：110~230v交流。

■典型應用：雕刻機、切割機、絲印設備、數控機床、自動裝配設備等。

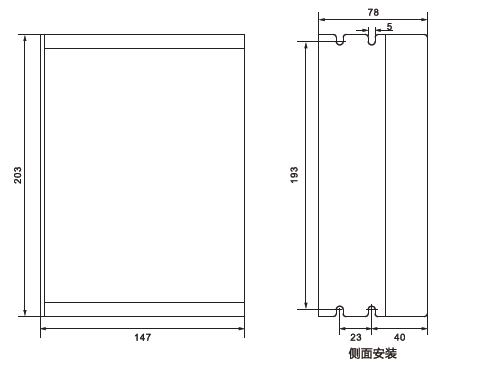

●安裝尺寸

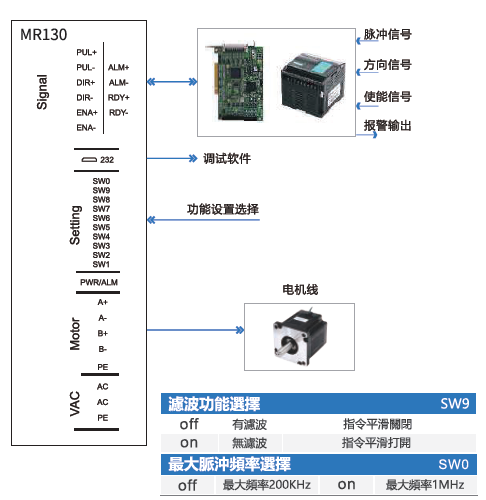

●接線示意圖

供電電流--交流
AC	電源	110-230交流

●工作電流設定

RMS(A)	SW1	SW2	SW3	SW4
0.7	on	on	on	on
1.1	off	on	on	on
1.6	on	off	on	on
2.0	off	off	on	on
2.4	on	on	off	on
2.8	off	on	off	on
3.2	on	off	off	on
3.6	off	off	off	on
4.0	on	on	on	off
4.5	off	on	on	off
5.0	on	off	on	off
5.4	off	of	on	off
5.8	on	on	off	off
6.2	off	on	off	off
6.6	on	off	off	off
7.0	off	off	off	off

濾波功能選擇		SW9
off	有濾波	指令平滑關閉
on	無濾波	指令平滑打開

最大脈衝頻率選擇			SW0
off	最大頻率200kHz	on	最大頻率1MHz
